PiMaps is a suite of Knime nodes specially developed to achieve analysis of Big Pharma chemical collections. The current set of nodes includes functionality for easily and quickly:

  • Cluster in a snap up to millions of compounds from big pharma chemical collections.
  • Visualize and manipulate big pharma collections onto Tree-Maps.
  • Work-out similarity between internal and external big collections.
  • Calculate diversity sets representative of whole collections.
  • Enrich and deorphanize series of compounds.
  • Identify series of compounds hierarchically.
  • Split and merge chemical collections.
  • Evaluate density of chemical series.

And many more!

PiMaps nodes achieve High-Throughput analysis through parallel computing based on CUDA, taking advantage of all the computing power of your Graphic Card Processing Units (GPUs).

PiMaps nodes have been tuned to work with binary Chemical descriptors available through Knime Cheminformatics Extensions but its use can be easily extended to any other source of Big Data requiring similar intensive analysis (i.e. WEB data clustering, mapping, search, etc.)

PiMaps nodes are the following:

PiMaps Builder

Map Builder

PiMaps Builder clusters and visualizes onto a 2D map a set of chemical compounds based on their fingerprint similarity. Clustering is made by a wise combination of K-Means and Tree-Maps and it is speeded up by GPUs.

MapBuilderClustering_512

Tree-Builder

TreeBuilderNode_256

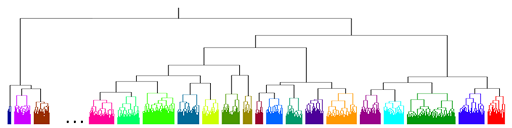

PiMaps Tree-Builder builds and visualizes a dendrogram based on the Tree-Map structure of a PiMap. The dendrogram can be split and coloured interactively to tag compounds based on sub-trees.

TreeBuilderDendogram_512

Similarity

SimilarityNode_256

PiMaps Similarity achieves extremely fast similarity based on the preliminary clustering of compounds into PiMaps. Similarity can be achieved intra or inter maps containing compound chemical collections.

Diversity

DiversityNode_256

PiMaps Diversity gathers compounds representing the diversity of an input chemical collection. The collection has been previously clustered on a PiMap and the diverse selection is achieved by gathering in a round-robin way the compounds stored in the cells of the map.

Enrichment

Enrichment_256

PiMaps Enrichment adds compounds to an input chemical collection from a second input source of compounds. The enrichment can be achieved to improve diversity and density.

Join PiMaps

JoinMapsNode_256

Join PiMaps achieves different operations on maps :

  • Full – Joins two maps preserving the content of map cells but generating a new map topology.
  • Partial – Projects the compounds of a first map onto a second map preserving the latter topology.
Split PiMaps

SplitMapsNode_256

Split PiMaps creates two distinct maps from the split of an input map. The splitting preserves the clustering of compounds from the initial PiMap cells.


Please get in touch through my contact page should you be interested in this product.
